Product Description
Roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production of flat and beautiful appearance, uniform paint pattern, high strength, and durability are widely used in industrial and civil buildings, such as workshops, warehouses, gymnasiums, exhibition halls, theaters, etc. Faces and walls
Detailed Images
| roll forming machine specs |
1. Dimensions: length 6000mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 15 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm
5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm; |
Roll forming machine production line:
Material feeder→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables
Roll forming machine different angle pictures
it main 2 parts, body&feeding part
body including rollers, shaft ectss..,
Roll forming mahcine more details
| PLC: easy to opearte, for the lanuage can be customzied. Of course, PLC brand can also install it according to your requests |  |

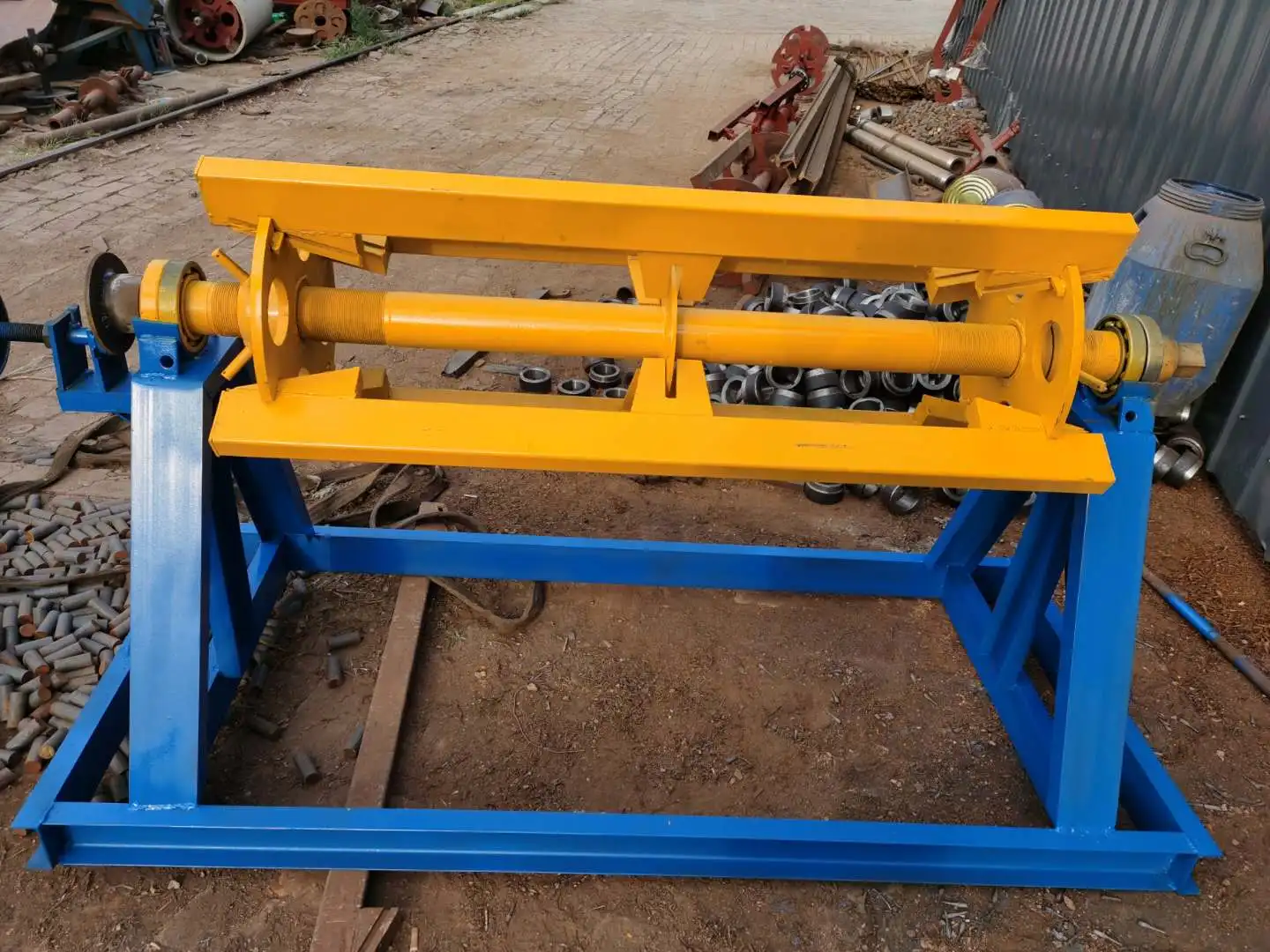

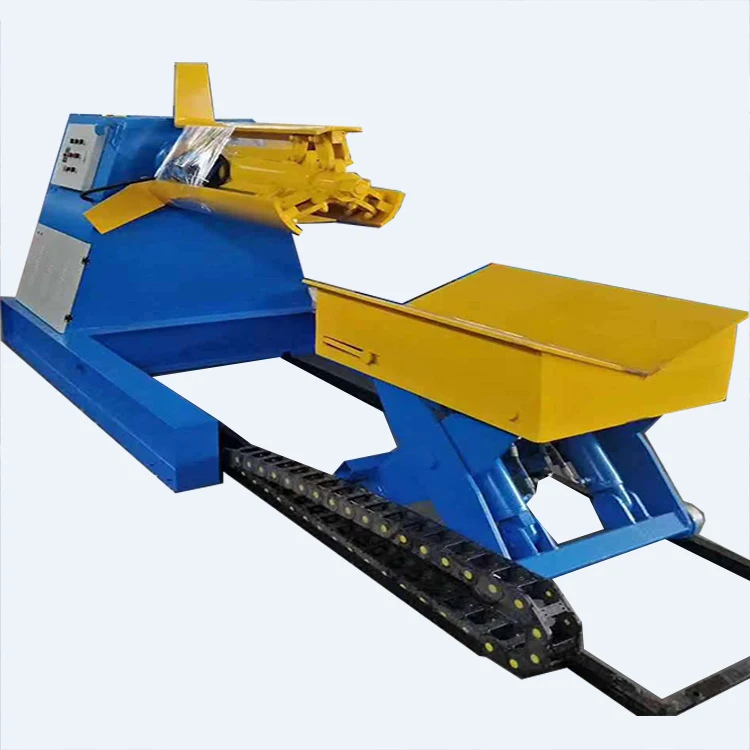

| feeding |  |
| roller: 45#, can be OEM |  |
| hydraulic cutting prorect your coil good when cutting |  |
| travel switch control coil length, the length can adjust according to people' requests |  |
If you want to do many different panell, we can customzied for you, 2 layer, 3 layer, 4 laeys ectss
save your factory spaces
| double layer |  |
| three layer |  |
Roll forming more pictures:
all can be customzied, just send you panel layout
Popular panel
customers' feednack
Roll forming machine
good comments
Packaging & Shipping
roll forming machine:
machine size is big, usually shipped by full container, 20GP, 40HQ, which is the suitable for this machine.
It can protect machine good too~~
Customers' feedback below
